1) : 1 μm
| Type | FILTER BAG |
| Material | PP (Polypropylene) |
| Diameter | 178 mm / 7 in |
| Length | 32 in / 800mm |
| Micron | 1 μm |
| Flow rate | 7 m3 (MINIMUM) |
| Max, temperature | 80 °C (MAXIMUM) |
| Ring material | Plastic |
| Ring type | F |
2) : 5 μm
| Type | FILTER BAG |
| Material | PP (Polypropylene) |
| Diameter | 178 mm / 7 in |
| Length | 32 in / 800mm |
| Micron | 5 μm |
| Flow rate | 7 m3 (MINIMUM) |
| Max, temperature | 80 °C (MAXIMUM) |
| Ring material | Plastic |
| Ring type | F |
3) : 10 μm
| Type | FILTER BAG |
| Material | PP (Polypropylene) |
| Diameter | 178 mm / 7 in |
| Length | 32 in / 800mm |
| Micron | 10 μm |
| Flow rate | 7 m3 (MINIMUM) |
| Max, temperature | 80 °C (MAXIMUM) |
| Ring material | Plastic |
| Ring type | F |
4) : 25 μm
| Type | FILTER BAG |
| Material | PP (Polypropylene) |
| Diameter | 178 mm / 7 in |
| Length | 32 in / 800mm |
| Micron | 25 μm |
| Flow rate | 7 m3 (MINIMUM) |
| Max, temperature | 80 °C (MAXIMUM) |
| Ring material | Plastic |
| Ring type | F |

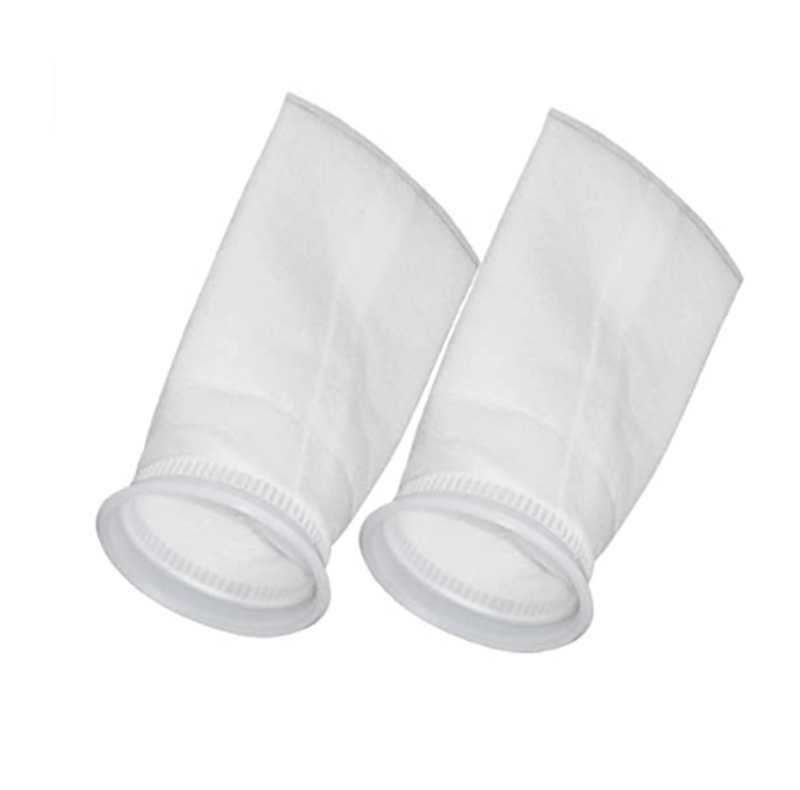

Function: Pre-filter, as the 1st stage of filtration for capturing large particles, can increase the service life of 2nd & 3rd stage of cartridge filter.
Filter bag are efficacious at weeding out debris, oil, and other pollutants from liquids, providing a wide range of applications while being an economical filter media. Yitong bag filters are applied in various scenarios in numerous industries such as industrial manufacturing, oil & gas, municipal water, and other power & utilities services.
● Firstly, they are produced by high-speed industrial sewing machines without the need for silicone oil cooling, which eliminates the risk of silicone oil contamination.
● Secondly, they are able to capture impurities larger than their own mesh size during the filtration process.
● Additionally, they comprise multi-layer micron-level fine fiber filter material, which is capable of capturing hydrocarbons and trapping dirt.
● Furthermore, the 15 layers of different densities and dirt holding capacity greatly extend the service life of the filter bags.
● Finally, conductive fibers and chemical fibers are added to the conductive filter material to ensure the safety of static electricity.
Filter bags are used for a variety of industrial applications. These include:
● Construction materials industry
● Bio mass power stations
● Chemical and pharmaceutical industry
● Metal and steel production
● Coal-fired power stations
● Food industry
● Thermal waste treatment
● Hydraulic & Lubrication Industry
● Food & Beverage Industry
● Oil & Gas Industry
