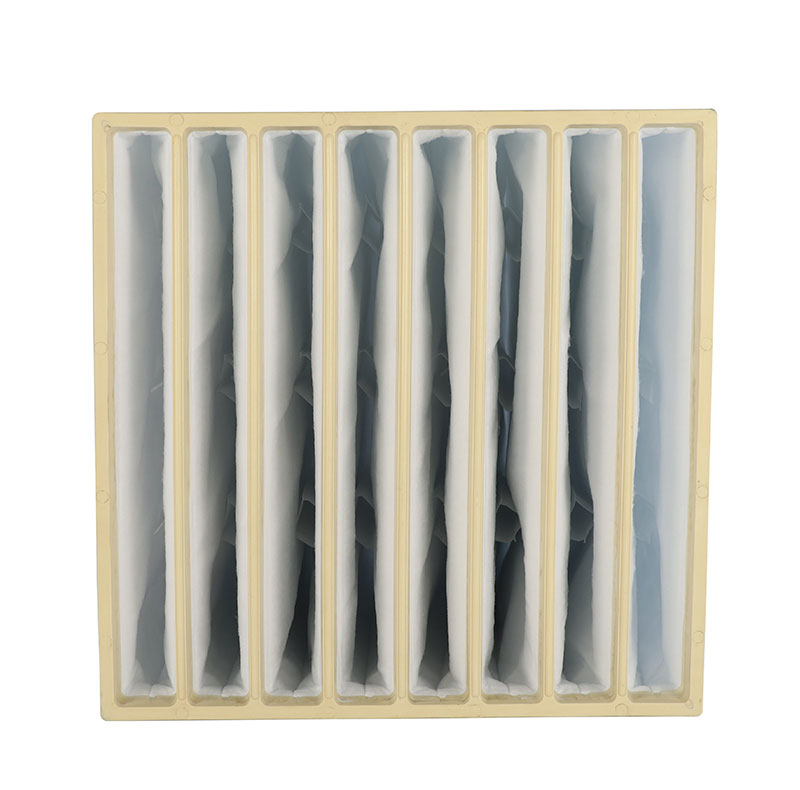

In gas turbine applications, bag-type air filters provide a large effective filtration area, minimizing pressure drop and maintaining energy efficiency.
Bag-type air filters play a critical role in ensuring the efficient and reliable operation of gas turbines. Gas turbines require a continuous supply of clean air to maintain optimal combustion and prevent damage to internal components caused by particulate contamination. Bag-type air filters are specifically designed to handle the high airflow rates and stringent filtration requirements of gas turbine intake systems.
| Size: Nominal (inches) Actual (mm) | : | 24 X 24 X 24 592 X 592 X 600 |
| Media Type | : | 1. Synthetic (Thermally Welded, self-supporting multi pocket filter, made from non-woven synthetic media, featuring a progressive density structure and a totally safe, fire extinguish, non-toxic formula, water proof to prevent droplets passing through)2. Media Shall be very high rigid so to ensure utmost integrity. The rigidity shall such that the filter can stand on its pockets on the floor.3. Filter pockets shall be thermo welded to provide a leak proof seal. |
| Filter Frame | : | Plastic |
| Type of Flow | : | Normal Flow |
| Effective Media area approximate (m²) | : | Min 4.0 m² |
| Number of filter pocket | : | 6 |
| Length of filter pocket (mm) | : | 575 - 630 mm |
| Filter Materials | : | Synthetic material fiber |
| Holding box size (mm) | : | 610 X 610 |
| Initial resistance (Pa) at 3400 m³/h | : | Max 70 pa |
| Final resistance (Pa) | : | 250 Pa as per EN779 @3400 m³/hor200 Pa as per ISO 16890 @3400 m³/h |
| Direction of Air Flow | : | Filter media should be properly marked to identify the direction of air flow |
| Average arrestance (Am) of Synthetic dust | : | ≥ 90% |
| Dust Holding Capacity (ASHRAE/ISO) @250 pa | : | Min. 600gm @250 Pa as per EN779;Min. 600gm @200 Pa as per ISO 16890 |
| Efficiency Class /ISO Rating | : | G4 as per EN779;orISO Coarse 70% as per ISO 16890 |
| Gasket | : | Seamless Rubber Gasket. |
| Size(mm) | Efficiency Class | Air Flow（m³/h） |
| 592*592*600 | G4 | 3400 4250 |
| 592*592*620 | F5 | 4250 |
Media Type:
Synthetic Media: The filter is made from non-woven synthetic media, featuring a progressive density structure that enhances filtration efficiency.
Thermally Welded Pockets: The filter pockets are thermally welded to provide a leak-proof seal, ensuring no air bypass and maintaining consistent performance.
High Rigidity: The media is highly rigid, allowing the filter to stand on its pockets without collapsing, ensuring utmost integrity and longevity.
Fire Extinguishing and Non-Toxic: The media is designed with a totally safe, fire-extinguishing, non-toxic formula, making it suitable for use in sensitive environments.
Waterproof: The media is waterproof, preventing droplets from passing through and ensuring reliable performance in humid conditions.
Filter Frame:
Plastic Frame: The filter is equipped with a durable plastic frame that provides excellent support and ensures easy installation.
Filter Materials:
Synthetic Material Fiber: The filter is made from high-quality synthetic material fibers, ensuring excellent filtration performance and durability.
Dust Holding Capacity:
Minimum 600g: The filter has a dust-holding capacity of at least 600g at 250 Pa as per EN779 or 200 Pa as per ISO 16890, ensuring long service intervals and reduced maintenance costs.
Gasket:
Seamless Rubber Gasket: The filter is equipped with a seamless rubber gasket, ensuring a tight seal and preventing air leakage.
These filters are constructed with thermally welded, self-supporting synthetic media, featuring a progressive density structure that effectively captures a wide range of particulate matter, including dust, dirt, and other airborne contaminants. The high rigidity of the media ensures structural integrity, even under high airflow conditions, while the waterproof properties prevent moisture from passing through, which is particularly important in humid or wet environments.
