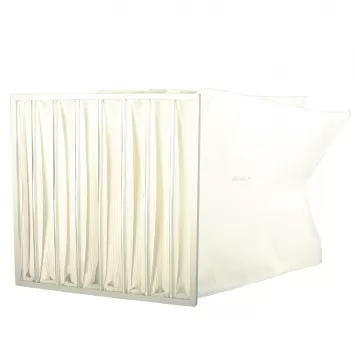

Nanowave Bag Filter

The Nanowave Bag Filter is a cutting-edge air filtration solution designed to efficiently capture fine dust while maintaining low energy consumption.

Products Description

The Nanowave Bag Filter is a cutting-edge air filtration solution designed to efficiently capture fine dust while maintaining low energy consumption. Built with innovative NanoWave media, this advanced filter features a unique internal wave-like structure that significantly enhances its filtration performance.


Superior Filtration with NanoWave Technology

Unlike conventional bag filters, NanoWave media utilizes an advanced material design that effectively increases the filter surface area. With twice the surface area of traditional bag filters, Nanowave ensures superior dust-holding capacity and extended service life, reducing the need for frequent replacements.


Low Air Resistance for Optimized Airflow

One of the standout benefits of the Nanowave Bag Filter is its low air resistance, which optimizes airflow within air handling systems. This not only improves overall system efficiency but also helps lower energy consumption, making it a cost-effective and environmentally friendly filtration choice.

Size:  (mm)592 X 592 X 600
Media Type Nanowave
Filter FrameMetal
Type of FlowNormal Flow
Effective Media area approximate (m²)Min 5.6 m²
Number of filter pocket8
Filter MaterialsNanowave
Initial resistance (Pa) at 3400 m³/h106.2 pa
Final resistance (Pa)301.7 Pa as per ISO 16890 @3400 m³/h
Direction of Air FlowFilter media should be properly marked to identify the direction of air flow
Dust Holding Capacity (ASHRAE/ISO) @250 pa 1111gm @200 Pa as per ISO 16890
Efficiency Class /ISO RatingF8 as per EN779;or ISO Coarse 70% as per ISO 16890



Key Benefits of Nanowave Bag Filter:

Enhanced Filtration Efficiency – Captures fine dust particles effectively with high-performance NanoWave media.


Expanded Surface Area – Offers double the filtration surface compared to traditional bag filters.


Lower Energy Consumption – Reduced air resistance optimizes airflow, leading to energy savings.


Extended Filter Life – High dust-holding capacity minimizes filter replacements and maintenance costs.


Ideal for HVAC and Industrial Applications – Perfect for commercial buildings, cleanrooms, and other air filtration systems requiring high efficiency.


Test Report

Nanowave Bag Filter
